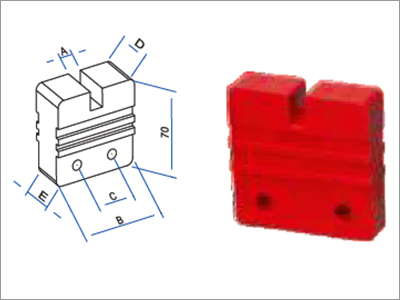

One Way Finger Support
Product Code | Bus Bar Size | DIMENSION IN MM | ||||
A | B | C | D | E | ||
Pro-M-106S | 6mm x 1Bar | 7.0 | 60 | 32 | 14 | 10 |
Pro-M-110S | 10mm x 1Bar | 11.2 | 60 | 32 | 14 | 10 |
Pro-M-112S | 12mm x 1Bar | 13.2 | 60 | 32 | 14 | 10 |
Pro-M-106W | 6mm x 1Bar | 7.0 | 70 | 32 | 20 | 16 |
Pro-M-110W | 10mm x 1Bar | 11.2 | 70 | 32 | 20 | 16 |
Pro-M-112W | 12mm x 1Bar | 13.2 | 70 | 32 | 20 | 16 |
Pro-M-106K | 6mm x 1Bar | 7.0 | 80 | 32 | 26 | 22 |
Pro-M-110K | 10mm x 1Bar | 11.2 | 80 | 32 | 26 | 22 |
Pro-M-110K | 12mm x 1Bar | 13.2 | 80 | 32 | 26 | 22 |
![]() |
