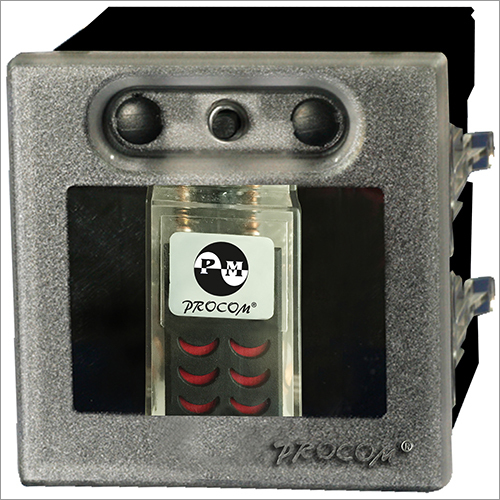

Auxilliary Lockout Relay
Auxilliary Lockout Relay
FEATURES
- Electromechanical design
- Screw terminals
- Self or hand reset contacts
- Protective transparent cover for the element
- Compact flush mounting case
Description
High speed tripping relays are electromechanical, attracted armature type, used in control and alarm circuits. Each element is enclosed in a dust proof moulded, transparent, polycarbonate cover. This results in a compact rugged and reliable design. Radio metal is used for the magnetic components such as the armature, the core and the yoke of the relay to ensure good electrical performance. The contacts are made from phosphor bronze and are nickel plated. The contact tips are of pure silver. The use of these materials ensures very good contact performance. Each element can be offered as - 4 NO + 1 NC or 3 NO + 2 NC or 2 NO + 3NC or 5 NO(to be specified while ordering)
Technical Data Ratings
| Rated voltage | 24,30,48, 110,220 or 250 V DC |
| Operating range | 50-120% of rated voltage |
| Burden | 25 watts (maximum) at rated voltage |
| Operating time | Less than 10 ms at rated voltage (nominal) |
| Operation indicator | Hand reset mechanical flag |
| Contacts | 4 NO + 1 NC or 3 NO + 2 NC or 2 NO + 3NC +5 NO |
