AMF Controllers

AMF Controllers
AMF Controllers
Send Inquiry

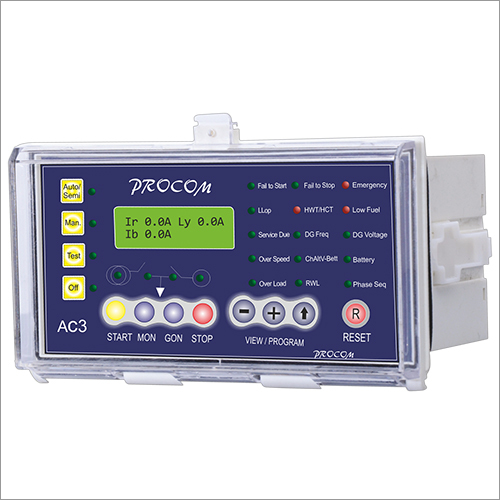

Product Code : AC 3
Brand Name : MRM PROCOM
Price And Quantity
  • Minimum Order Quantity
  • 1 , Piece
  • Price
  • 8200 INR/Piece
Product Specifications
  • Base Material
  • Metal Base
  • Product Type
  • Electrical Box
  • Material
  • Stainless Steel
  • Surface Finish
  • Painted
Product Description

We, Mrm procom pvt. Ltd, are manufacturing, exporting and supplying a wide array of AMF Controllers. These controllers are manufactured using the best quality components and pioneering techniques at our advanced production unit. Offered controllers are best suited to be installed in residential and industrial sectors for automatic controlling of several electronic equipments and machines depending on the voltage supply. As per the requirement of client, we are offering these AMF Controllers in different specifications at reasonable prices.


  • Accurate measurement
  • Supreme finish
  • Easy operation
  • Compact size

AMF Controllers

Protection, Supervision Salient

  • Mains 3 phase monitoring for under/over voltage, under/over frequency, Overload Phase Sequence
  • and Phase voltages unbalance.
  • Generators 3 phase monitoring and protection for under/over voltage, under/over frequency, over load, and over speeding.
  • DC Battery Voltage supervision (Under Over voltage)
  • 8 digital input for system protection
  • DG Fail to Start supervision
  • Fuel, HWT and LLOP measurements and value display.
  • DG fail to Stop supervision
  • User programmable engine warm up time, before the load is switched to generator.
  • Mains Restoration supervision
  • User pro grammable Cranking attempt.
  • User programmable Crank Time and delay between two successive cranks
  • External signal for remote operation
  • Service Due reminder
  • History of Faults
  • Mains/ generator no. Of phases selection
  • Installed sensor selections.
  • Choke function
  • Load management optional
  • Measurement of KW,PF and KWhr for Generator
  • Real Time Clock (RTC)
Measurement & Display

16 segment 2 line LCD displays the following parameters. Some of the parameters are model dependent and are available in only those models

Mains 3 Phase voltage (LL & LN)
  • Mains Frequency
  • Generator 3 Phase Voltage(LL & LN)
  • Load 3 Phase current
  • Generator Frequency
  • Battery Voltage
  • Generator Run Hour
  • RPM
  • Fuel Level, HWT and LLOP
  • KWh of generator
  • KW and PF of generator
  • Up to BTS Voltage (Optional)
  • One Room temperature (Optional)
  • Service Hour Due
Programming mode

Parameter name on first row of LCD

Explanation of parameter

Factory setting

Setting Range

Mains O/V

Max. Permissible voltage, above this the voltage is treated unhealthy Generator is started.



Mains U/V

Min. permissible voltage, below this the voltage is treated unhealthy Generator is started



Mains Sup Delay

Time for which the Mains voltage has to be unhealthy (Under or Over voltage as defined above in 1 & 2) before starting the Generator.



Mains O/F

Max. Permissible Mains frequency, above this frequency the Mains is treated unhealthy Generator is started.


40-65Hz, disable

Mains U/F

Min. permissible Mains frequency, below this frequency the Mains is treated unhealthy & Generator is started.


40-65Hz, disable

Mains Freq Delay

Time for which the Mains frequency has to be unhealthy (under or over voltage as defined above in 4 & 5) before starting the Generator.



Mains O/Current

The current above which the over current fault monitoring has to start. The timer for it is as described in 8.. This fault is only enabled when the MCB is closed. On expiry of the timer the MCB is opened and reset key has to be pressed for reclosing the MCB

6Amps for /5 40Amps for Procom Make Cts

1-999 Amps

Mains O/C

Duration for which the external or




AC voltage withstand

330 VAC (Phase to neutral)

Measurement Accuracy

Voltages & Current

1% of Measurement

Power & Energies


Surge 1.2/50Usec


Battery Voltage

Suitable for 12V/24 VDC System

Min. voltage to power on


Min Running Voltage after Power on


Max. Battery Voltage


DC Interruption time

1 Sec.


NC, 230V / 6A


NO, 230V / 6A


NO, 24V / 6A

Contact(Fuel Sol)

NO, 24V / 6A


NO, 24V / 6A

Contact Choke

NO, 24V / 6A

Contact(Fuel Pump)

NO, 24V / 6A

Contact(Load Management)

NO, 24V / 6A

Cut out Dimensions

186mm X 90mm



Digital Input Level

Battery Voltage (Negative) except charging Alternator which is positive.
