Prepaid Meter

Prepaid Meter
Prepaid Meter
Product Code : 15
Product Description

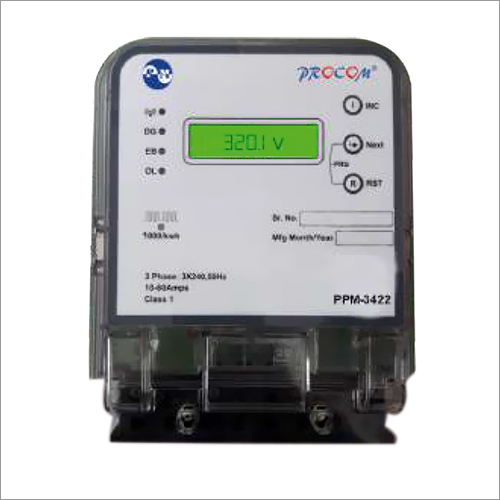

Prepaid Meter


Prepaid Meter is a user friendly meter and having compact wall mounting design, equipped with 10 digit, 2 row LCD display. Top row diaplays measurements and bottom row displays the parameters. Two navigator keys & LCD display simplifies meter configuration. Prepaid meter is a three phase dual source meter and can measure upto 80Amps whole current. Prepaid meter is available with accuracy class of 1.0 as per IS13779 and communication through RS 485.


  • Critical data such Billing data, consumption, balance available etc are avaiable both on Server and meter.
  • Data is not lost due Failure of either server or meter
  • Data transfer to Meter on RS485 port is secured by encryption AES-128 to prevent tampering and hacking of the meter
  • No separate EB and DG recharging.
  • Protects your equipment against overload/over voltage.
  • Displays and communicates Balance, VLL, VLN, Amp, Hz, W, PF, VA, Kwh/KVAh(EB and DG)
  • Indication for Low Balance.
  • Currency based recharging for EB, DG, Fixed Charges and Maintenance Charges.
  • Maintenance charge deduction on daily or monthly baisis
  • History of last 12 Recharges
  • Last 6 months of consumption records.
  • Last 180 days daily consumption log
  • 30 days calendar for holiday cut off prevention
  • Programmable happy hours
  • Programmable weekly off
  • Remote display unit allowing customer to monitor consumption.
  • Currency based recharging for EB, DG, Fixed Charges and Maintenance Charges.

Rs485 Option:

  • Optically isolated connection
  • Baud Rates up to 19200
  • Up to 247 Nodes on a single network
  • Modified Modbus on Rs485

Software Features:

  • Customisation of meter parameters:
  • Customer Id
  • Customer Name and Add
  • Customer Mobile number


  • Tariff for EB and DG
  • Load sanctioned for EB and DG
  • Holiday calendar
  • Weekly off
  • Happy Hours
  • Billing on KVAh or Kwh
  • Maintenance charges
  • Additional Charges etc

Technical Specifications


Class 1.0

Input Voltage


Referance Voltage

230 V (L-N)

Input Current


Input Current

10A Ibasic, 60A Imax.

Burden at Current circuit

<2.5 VA per phase

Burden at Voltage circuit

10VA per phase

Current withstand

60A continuous, 80A for 1 second

Input Frequency

40 to 70 Hz


2Row 10Digit (LCD)

Display Scrolling

Automatic/ Manual
